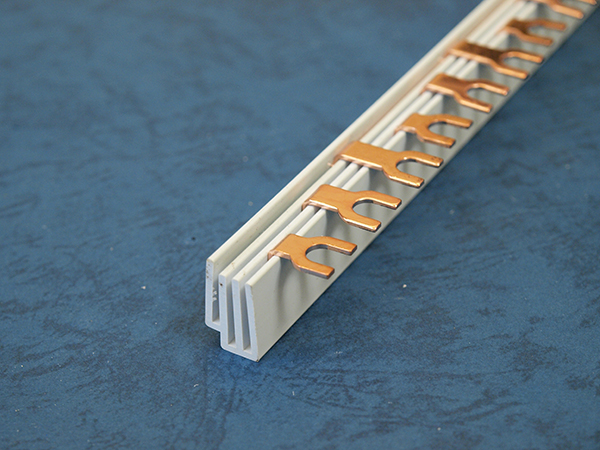

ENHT-U3P
 |

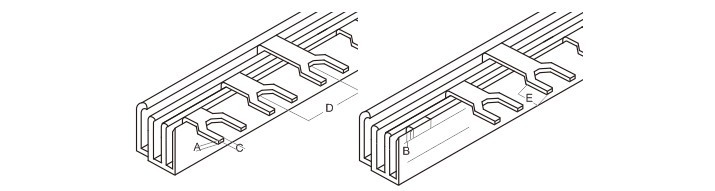

| 规格 | 型号 | A | B | C | D | E | 横截面积 | 参考电流 |
| HT-U3P | 3P | 1.2 | 5 | 12 | 17.8 | 12 | 6mm² | 32A |
| HT-U3P | 3P | 1.2 | 7 | 12 | 17.8 | 12 | 8mm² | 50A |
| HT-U3P | 3P | 1.5 | 7 | 12 | 17.8 | 12 | 10mm² | 63A |
| HT-U3P | 3P | 1.5 | 9 | 12 | 17.8 | 12 | 13mm² | 80A |
| HT-U3P | 3P | 1.8 | 9 | 12 | 17.8 | 12 | 16mm² | 100A |
| HT-U3P | 3P | 2.0 | 10 | 12 | 17.8 | 12 | 20mm² | 120A |
